automotive engine hoist telescoping hydraulic cylinder hydraulic lift cylinders

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: QPPY

<h2 style="word-wrap: break-word; margin: 0px; padding: 0px; color: rgb(0, 0, 0); font-family: arial; font-size: 13px; font-style: normal; font-vari

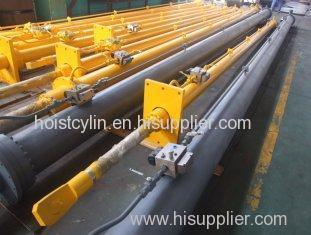

Stoke 16m QPPY-D type Flat Gate Hang Upside Down Heavy Duty Hydraulic Cylinder



Widely used in metallurgy , roll, ship, aerospace, transport and power equipment.

Apply to high-temperature , high-pressure and rugged environment

Key Specifications/Special FeaturesKey Specifications/Special Features

Application industry water conservancy, mechanical/marine/mining equipment, oil industry, vehicles, energy and port facilities
Stroke length 50 to 16,000mm
Tube inner diameter 80 to 1,050mm
Piston rod diameter 45 to 600mm
plate Ni/Cr/ceramic
Working pressure 70 to 700 bars
bearing LONGXI(china)or SKF
Seal type common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)
valves parker/rexroth/atos/hydcom
Certification DNV, ABS, Lloyds, BV, SGS, GL, and CCS
Material  carbon, alloy, stainless steel
  Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced






QPPY-D type hydraulic hoist is also used for general flat gate to work for opening and closing. Working requirements are similar to QPPYII type, but its installation forms are different from QPPYII type. The remarkable difference is to reduce half space height in order to make more reasonable decorate. The acceptable working temperature should around from -35-50.

QPPY-D series hydraulic hoist : Flat gate hydraulic hoist, flat gate with hang upside down.

The only one super size cylinder manufactuer in China.

Full experience in design, produce, mounting, testing, operation and maintenance.

Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.

Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.

2000m2 synthetic office building of computer control net work center

GB/T9001-2000, IDT ISO 9001:2000 quality management system.

AAA grade credit certificate issued by international credit assessment center.



QPPYD type Flat Gate Hang Upside Down Hydraulic Scissor Hoist


We are Changzhou Hydraulic Complete set Equipment Co., LTd, leading manufacturer for hydraulic cylinder, hydraulic servomotor, dam hydraulic hoist.

Products:full series of hydraulic cylinder, heavy duty hydraulic cylinder, hoist cylinder, oil cylinder, super size hydraulic cylinders.

30 years in manufacturing hydraulic cylinders, application for  water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.

The only one super size cylinder manufactuer in China.

Full experience in design, produce, mounting, testing, operation and maintenance.

Cylinder max. Diameter 1200mm, stoke 16m, and annual productivity over 2000t.

Strong technological force and advanced technique and equipment, such as 3 sets of sunnen grinding machines.

2000m2 synthetic office building of computer control net work center

GB/T9001-2000, IDT ISO 9001:2000 quality management system.

AAA grade credit certificate issued by international credit assessment center

30 years in manufacturing hydraulic cylinders, application for  water conservancy projects, vehicles, machinery equipments, ship building, military industry and metallurgy equipments.
